LineVu Discovery Quickstart Guide
SCOPE
This MS (Method Statement) details the manufacturers recommended method to be employed for the installation and commissioning of the LineVu Discovery Study system on a customer/end user site. It is to ensure the safety of both equipment and personnel, and is generic in that it does not include site specific details, or mention local rules, regulations and or directives.
It is the responsibility of the customer/end user to generate suitable MS, RA (Risk Assessment), Permit to Work and any other safety documentation required for the safe installation of equipment; which includes site specific details, or mention local rules, regulations and or directives.
APPLICABLE MODELS
LineVu 100 & 110

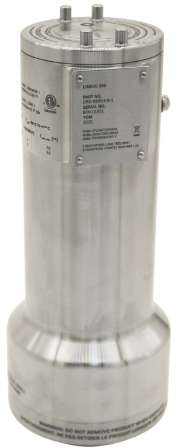

LineVu 300
Quickstart Guides
LineVu 100 & 110 -------------------------------------------------------------- | Install Guide: OMM-0024-EN-1 (Quickstart Guide LineVu Discovery - US English) -------------------------------------------------------------- Removal Guide: OMM-0025-EN-1-(Removal Guide LineVu Guide Discovery - US English) -------------------------------------------------------------- Hazloc OMM: OMM-0016-EN-2 (LineVu 110 - Hazardous Area Information - ATEX, UKEx, CEC, NEC & IECEx) |
LineVu 300 | Install Guide: OMM-0028-EN-1-(Quickstart Guide LineVu 300 Discovery - US English) -------------------------------------------------------------- Removal Guide: OMM-0029-EN-1-(Removal Guide LineVu 300 Discovery - US English) -------------------------------------------------------------- Hazloc OMM: OMM-0018-EN-1 (LineVu 300 - Hazardous Area Information - ATEX, UKEx, CEC, NEC & IECEx) |
