LineVu Bracing Installation

LineVu Bracing Installation

Process Vision is committed to providing robust solutions for pipeline monitoring with our LineVu product. To support our customers and ensure the longevity and reliability of installations, we utilize AVT Reliability's Easy-Brace® solution. This universal bracing system is specifically designed to mitigate vibration-based fatigue fractures in small bore connections.





Why Bracing is Essential

The nature of small bore connections makes them susceptible to vibrational forces, potentially leading to fractures or operational inefficiencies over time. The Easy-Brace® system offers a reliable solution to counteract these effects, ensuring the stability and integrity of the installation.
​
​

Installation Guide

For a comprehensive guide on how to install the EasyBrace® system with LineVu, please refer to the instruction manual provided by AVT Reliability. The manual includes detailed steps and illustrations to ensure a smooth installation process. Below is a quick step guide to install the Brace.


STEP 1




STEP 2





STEP 3

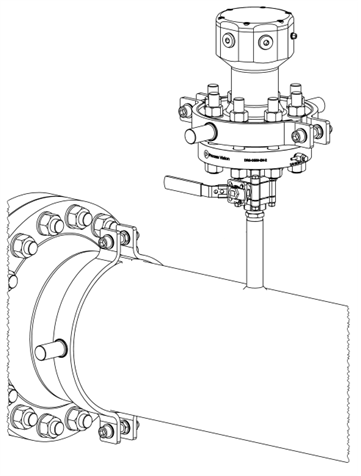

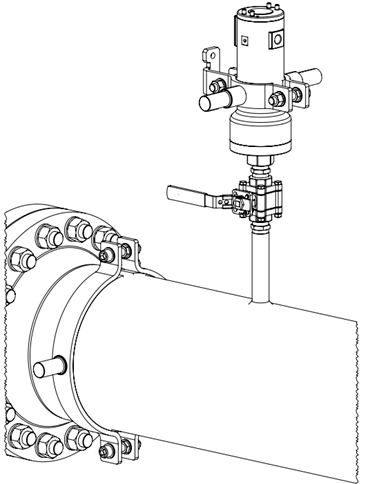

STEP 1         Use the provided fixings to attach the two pipe clamps to the LineVu flange and the main gas pipeline. Ensure the clamps are oriented as shown in the diagram above. Leave the gas pipeline clamp slightly loose to allow for later adjustments.

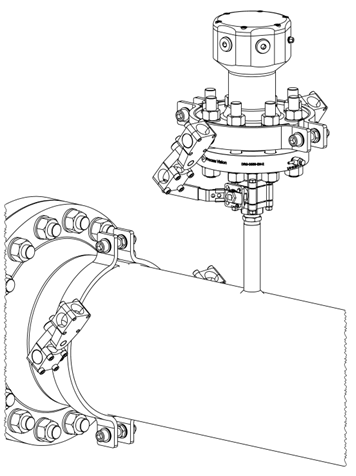

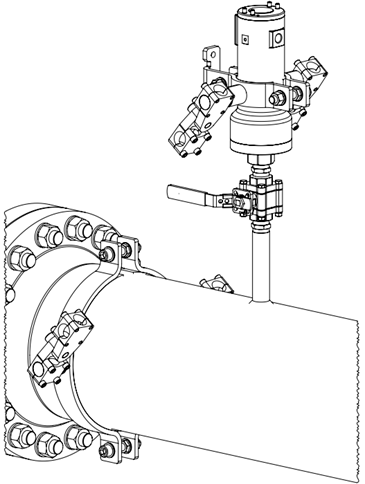

STEP 2         Attach the Uni-Clamps to the previously installed pipe clamps. Ensure they are properly aligned and secure.

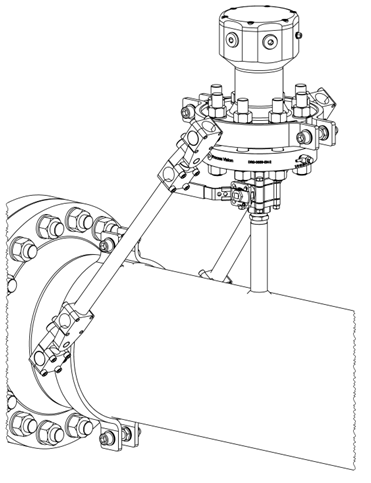

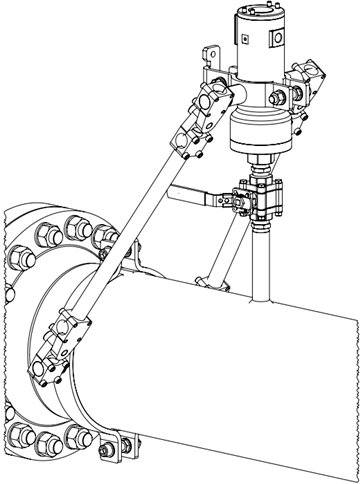

STEP 3         Measure the distance between the two Uni-Clamps to determine the required length for the struts. Cut the provided struts to the measured length, then install and securely tighten all fixings to complete the assembly.


Access the Manual

To download the PDF of the Easy-Brace instruction manual, please use this link.
